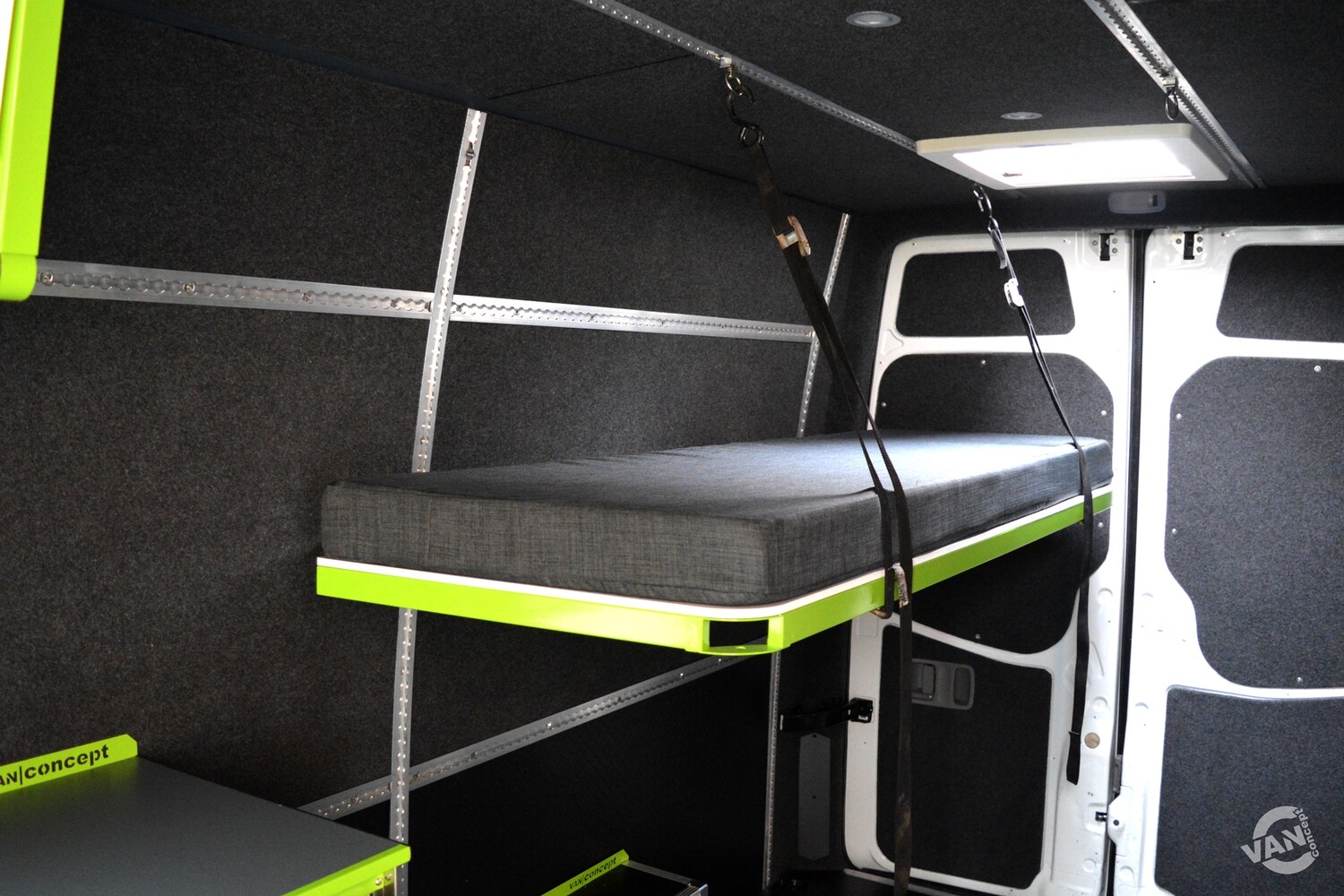

The bunk is perfect to catch some sleep on after that long drive. Fitted to the vertical L-Track on our Crux system, the bunk stows away vertically against the wall when not in use and is easily folded down to create a platform to sleep on - or to sit on, or to store things on, or do whatever you want on. The bunk can be fitted to both sides of the van, be used individually, as a pair side by side or one above the other and has the option of being purchased with or without a 4” foam mattress, that can be stowed on the bunk vertically against the wall. With Crux, the bunk can be positioned at any height within the rear of the van and has multiple tie down points built into the frame, with the option of retrofitting additional L-Track to the underside of the bunk for extra applications.
The bunk is manufactured from a powder coated steel welded frame, for optimal strength and is topped with either a lightweight & rigid PVC construction board panel or Hexagrip Phenolic plywood panel. Ratchet straps are required to hold the bunk in place to the roof mounted L-Track and also secure the bunk in its stowed position against the wall of the van.
Our bunk is a product for life. When your van bites the dust, or you feel it's upgrade time, don't be put off by starting a new conversion from scratch. Take our products with you! Our core products have been designed with longevity in mind, so will fit any van which has Crux fitted. On occasion, a few specific mounting brackets or end trims may be required to ensure a seamless fit, but we’ve done our best from the start to standardise our products for maximum compatibility. If we don't have a Crux kit for your van yet, please get in touch. It may be on our radar or it may be something you could help us develop!

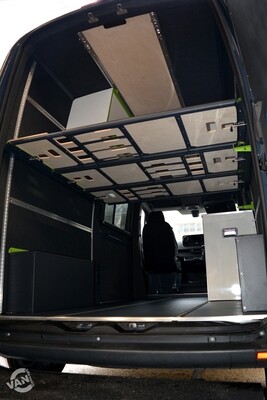

Please note: images show a pre-production Bunk with the production Bunk being 30mm narrower in width then shown in the images and also featuring a re-designed mounting bracket. We have future plans to bring out solid legs (to make a bench seat without straps) and offer various accessories to the underside of the bunk.
Product Specs
- Folding Bunk assembly constructed with a powder coated steel frame and plastic panels.
- Quickly installed into the van on four mounts by two people.
- Can be fitted to either side of the van at various heights.
- Folds flat against the van wall when not in use.
- Multiple tie down points on the underside of the bunk.
- Dimensions - 620mm wide x 1980mm long x 50mm thick.
- Weight - TBC
- Capacity - dependant on strap capacity.
- Requires Crux to be fitted to the van (L-Track is not included).
- Requires 2x ratchet straps per bunk.
- Comes pre-assembled.
- Approx. install time - 5 mins.
What's in the box?
- 1x Bunk
- Fasteners
- Fitting Instructions
Options
- Accent colour powder coat options.
- Panels can be manufactured in lightweight & rigid PVC construction board (white) or Hexagrip Phenolic Plywood.
- 4” foam mattress in a hardwearing Charcoal fabric.
Van Fitment
- Any van featuring the vanconcept Crux system
